Cathodic Protection, AC and DC threats share one pipeline — so why model it twice?

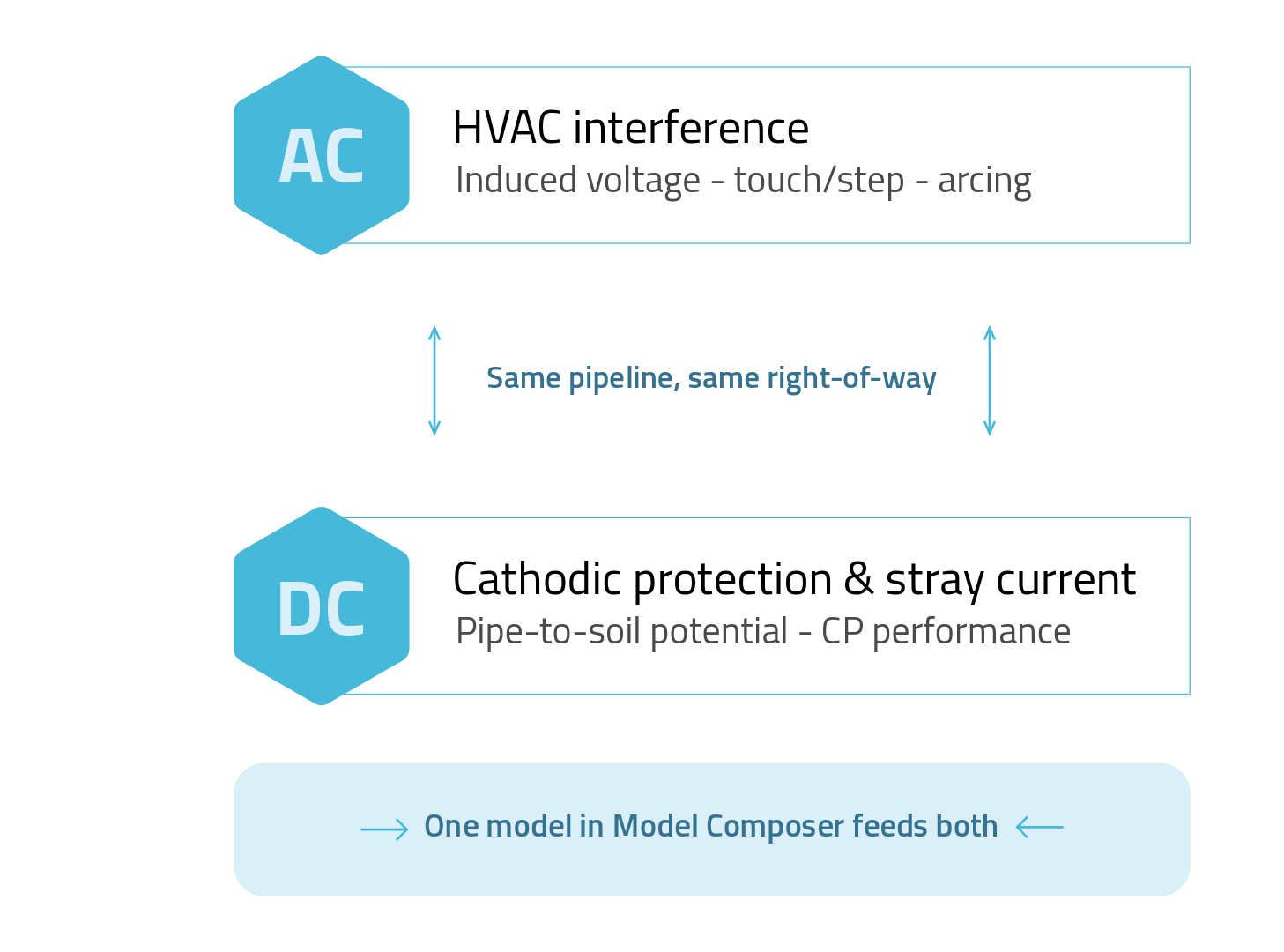

Pipeline integrity engineers face two very different electrical threats on the same asset: AC interference from HVAC power lines along the right-of-way, and DC corrosion from cathodic protection and stray-current sources.
Historically that meant two models, two datasets, two tools — and every geometry fix or field-data update had to be redone in both. The DC & AC Bundle removes that split: one geospatial model, built once, feeds both analyses.
Three tools, one continuous workflow
Build the model once, then run both the AC and the DC study from it
Elsyca Model Composer
Build
The GIS-based model-generation layer. Import KML, Shape or CSV, batch-import many formats at once, assign coating and soil resistivity directly to branches, and save the whole project to a reusable .emc file. Ships with IRIS and CatPro.
Elsyca IRIS
Solve the AC
Inductive and Resistive Interference Simulator. Computes induced voltages, touch/step potentials, ground potential rise and AC current densities under normal load and fault conditions — with automated tower-by-tower fault simulation and automatic arcing-risk assessment.
Elsyca CatPro
Solve the DC
Cathodic protection and DC stray-current analysis. Combined BEM-FEM solver for off-/on-/IR-free pipe-to-soil potentials, radial and axial currents and voltage attenuation across multi-pipeline, congested and DC-traction/HVDC-interference environments.
The workflow: From raw GIS data to a defensible AC + DC assessment
One field-data file powers both solvers. AC and CP measurements stay together, with units auto-converted for each study.
Model
Import routings by exact GPS coordinates. No limit on pipelines, power lines or mitigation systems.
Enrich & calibrate
Assign coating, soil resistivity, tower & rectifier data. Multi-UTM-zone detection catches geospatial issues early.
Analyze — AC
Automated fault simulation across every tower; arcing risk, step voltage and GPR at your points of interest.
Analyze — DC
Pipe-to-soil potentials, stray-current interference and CP performance across the same network.
Review & Share
Load previous results instantly, explore in viewer-only mode, export to Google Earth and SVG.
Dramatically faster solvers
Fully parallelised inductive and resistive solvers with a modern 64-bit build that lifts old memory limits — run bigger, more realistic models. Results identical, only the waiting is gone.
IRIS & CatPro
Automatic arcing-risk analysis
A fully automated, two-step assessment during resistive fault simulations — tower-to-pipeline distance (Sunde) combined with critical arc voltage, inputs gathered automatically, one summary file per faulted tower.
IRIS
Bigger, faster fault simulations
New solver options — "Faulted Power Line only" and "Towers inside the Interference Zone only" — shrink the model on the fly while leaving your master model untouched.
IRIS
Step voltage & GPR at points of interest
Automatically computed at user-defined Special Points — test posts, valves, assets — right where people and equipment are, with no separate manual analysis.
IRIS
Instant results review
Load previously computed steady-state (IRIS) and DC (CatPro) results straight from the results folder, branches and connections restored automatically. Pick up exactly where you left off.
IRIS & CatPro
Viewer-only mode
Load and explore results without a solver license (dedicated viewer license) — share with colleagues, managers and clients while keeping solver licenses free for the engineers who model.
IRIS & CatPro
Key Benefits
User-friendly
Proven daily by Elsyca's own consultants and a loyal customer base, refined on real user feedback.
Accurate & validated
Results that correspond with reality across hundreds of studies; CP solver co-developed with Gasunie.
Insightful
Rich visualization, Google Earth / SVG export and clear charts for both AC and DC results.
Standards-compliant
Supports compliance with local and international standards (NACE/AMPP, EN 12954, ISO 15589…).
